P104-CM Double Flange Clip Bearings Maintenance-free Plastic Bushing Linear Plain Bearing​

P104-CM double flange clip bearings are designed specifically for fitting shafts through sheet metal. For this reason, the bearings have flanges located on both ends. The bearings are secured in the sheet metal plate on both sides after fitting.

Material:

Plastic

Advantages

Ease of Installation

Angled slot:

The angled slit in the bearing allows for easy installation from one side and can compensate for expansion due to temperature or moisture.

Spiral shape:

The angled slit creates a spiral shape that allows the bearing to be inserted into the housing, ensuring a tight fit.

Manual and automated installation:

Double flange bearings can be installed manually or with automated equipment, making them adaptable to different production processes.

Flanges on both sides:

The flanges on both ends of the bearing prevent it from moving out of position, even in applications with high vibration or axial movement.

Secure retention:

The double flange design provides enhanced security, particularly in thin-plate applications where bearing retention is crucial.

Suitable for thin-walled housings:

Double flange bearings are ideal for housings with large tolerances, including stamped or laser-burned housings.

Noise reduction:

They can contribute to quieter operation in machinery.

Self-lubricating and maintenance-free:

Many double flange bearings are made from self-lubricating materials, minimizing maintenance requirements.

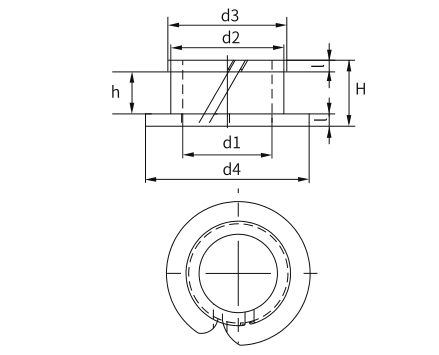

Standard Size

Double flange clip bearing
