Self Lubricating Plastic Bushing Polymer Flanged Linear Plain Bearings

Name: Self Lubricating Plastic Bushing Polymer Flanged Linear Plain Bearings
Brand: Joyreap
Price: 1 USD

Self Lubricating Plastic Bushing Polymer Flanged Linear Plain Bearings Manufactures

Brand Name : Joyreap

Model Number : P102

Certification : ISO 9001; IATF16949

Place of Origin : China

Material : Plastic

Type : Flanged

Specification : Standard Metric

Advantage : Low weight,long service life

Application : Automotive, Agriculture

Other Type : Straight, Thrust Washer

Contact Now

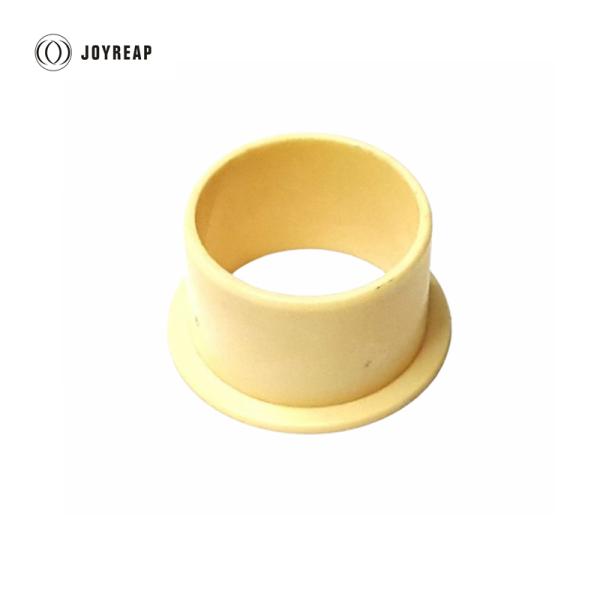

P102 Self Lubricating Plastic Bushing Polymer Flanged Linear Plain Bearings

P102 Plastic flange bushing is a type of plastic bushing. It is designed for low friction and wear resistance and it ischaracterized by their extremely low coefficient of friction while operating dry and minimal stick-slip effect.

Material:

Yellow Plastic

Feature:

Self-Lubricating and Maintenance-Free
Low Friction anChemical Resistance
Chemical Resistance
Lightweight and Cost-Effective
Suitable for Soft Shafts

Application

Dampening vibrations and eliminating the need for lubrication.
Automotive industry:In areas like steering systems, hinges, and pedal mechanisms.
Agricultural machinery: Where resistance to dirt and corrosion is important.

Technical Data

Material performance Table	Units	P102series	Test standard
General properties
Density	g /cm3	1.46	ISO1183
Color		Yellow
Max. moisture absorption at 23℃, 50% RH	weight %	0.3	ISO62
Max. moisture absorption	weight %	1.2	ISO62
MechanicaI properties
Flexural modulus	MPa	2800	ISO178
FIexu raI strength at 20℃	MPa	80	ISO178
Max . recommended surface pressure (20℃)	MPa	70
Shore Hardness (D-type)		75	ISO868
PhysicaI and ther maI properties
Max . application temperature long-term	℃	90
Max . application temperature short-term	℃	120
Min . application temperature	℃	- 50
Thermal conductivity	W/(m·k)	0.25	ISO22007
Coefic ient of thermal expansion (23℃)	-1 -5 K ·10	10	ISO11359
Electrical properties
Specific contact resistance	Ω cm	1E14Min	ICE60093
Surface resistance	Ω	1E12Min	ICE60093
Friction performance
Coeficient of friction, dynamic, against steel shaft	μ	0.06-0.18
Max . rotational speed	m/s	1.5
Max . pv value (dry operation)	MPa · m/s	0.4

Self Lubricating Plastic Bushing Polymer Flanged Linear Plain Bearings Images
