J101 Linear Plain Bearings Polymer Self lubricating Plastic Flanged bushing
J101 flanged plastic bushing is type of self-lubricating bushing.It's specifically to offer a balance of low friction, high wear resistance, and high load capacity. These bushings are designed to operate without external lubrication, making them maintenance-free and a cost-effective alternative to metal or bronze bearings.
Material:
Dark Grey Plastic
Feature:
Self-Lubricating:It contains solid lubricants embedded within the material, eliminating the need for external lubrication and preventing contamination
High load capacity:It can handle significant loads, making them suitable for various applications, including those with edge loads or vibrations.
Wear-resistant: It is designed to withstand wear, even in demanding applications involving high loads and continuous movement, with negligible wear.
Chemical resistance:It exhibits resistance to various chemicals, including some acids, greases, and oils.
Easy installation: It is designed for press-fit installation into a housing bore.
Cost-effective: They offer a cost-effective solution compared to metal or bronze bearings, especially when considering maintenance and lubrication costs.
Environmentally friendly: They require no lubrication, contributing to a cleaner environment by avoiding the release of contaminants.
Application
- Pneumatic rotary drives
- Steam pipelines
- Automotive engine compartments
- Conveyor chains
- Pneumatic cylinders
- Control levers and pedals in vehicles
- Exhaust valves in milling machines
- Track rollers in mini excavators
Technical Data
Material performance Table |
Units |
J101 series |
Test standard |
General properties |
|
|
|
Density |
g /cm3 |
1.48 |
ISO1183 |
color |
|
Dark Gray |
|
Max. moisture absorption at 23℃, 50% RH |
weight |
0.6 |
ISO62 |
Max. moisture absorption |
weight |
4 |
ISO62 |
MechanicaI properties |
|
|
|
Flexural modulus |
MPa |
7500 |
ISO178 |
FIexu raI strength at 20℃ |
MPa |
210 |
ISO178 |
Max . recommended surface pressure (20℃) |
MPa |
80 |
|
shore Hardness (D-type) |
|
85 |
ISO868 |
physicaI and ther maI properties |
|
|
|
Max . application temperature long-term |
℃ |
135 |
|
Max . application temperature short-term |
℃ |
220 |
|
Min . application temperature |
℃ |
- 40 |
|
Thermal conductivity |
W/(m·k) |
0.24 |
ISO22007 |
coefic ient of thermal expansion (23℃) |
-1 -5
K ·10 |
9 |
ISO11359 |
Electrical properties |
|
|
|
specific contact resistance |
Ω cm |
1E13Min |
ICE60093 |
surface resistance |
Ω |
1E11Min |
ICE60093 |
Friction performance |
|
|
|
coeficient of friction, dynamic, against steel shaft |
μ |
0.08-0.15 |
|
Max . rotational speed |
m/s |
1 |
|
Max . pv value (dry operation) |
MPa · m/s |
0.45 |
|
|
|

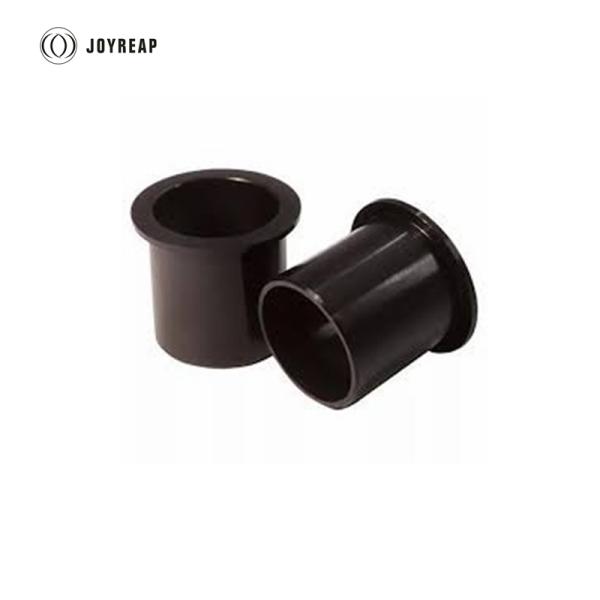

Linear Plain Bearings Polymer Self lubricating Plastic Flanged bushing Images
|
